GCE proFIT® PCM, PIPE CUTTING MACHINE

Add your review

For Price Request

Call 09053786919, Chat us via WhatsApp or use the quote button below.

TECHNICAL DATA

Cutting capacity: up to 100 mm of tube wall thickness
Cutting speed: manually driven
Operation: forward and reverse manually operated
Oxygen inlet connection: G1/4“, up to 8 bar, hose min. DN8
Fuel gas inlet connection: G3/8“LH, up to 1 bar, hose min. DN8
Body dimensions: (400 × 500 × 600 ) ( W x L x H in mm)
Weight: 15 kg
Chain links: Zn – coated, length 1300 mm, for tube diameter 1000 mm

GCE PROFIT® PIPE CUTTING MACHINE

Art. Nr. Description Nozzles to be ordered
0870648 GCE proFIT® PCM with nozzle-mixing cutting torch
3C00448 Additional chain links, 82 detachable links, length 2,4 m
F25310014 Cutting torch nozzle mixing, G1/4, G3/8, G3/8LH ANME, PNME
F25310015 Cutting torch nozzle mixing, 9/16 UNF ANME, PNME

BASIC MACHINE PACKAGE INCLUDES: Manually driven machine; One nozzle mix cutting torch with basic cutting nozzle, Torch holder, Torch bar, Chain tightening mechanism, Internal gas hoses, Gas manifold with shut-off valves, Basic chain 1,3 m long.



CONSUMABLES

CUTTING NOZZLES ANME – ACETYLENE

Art. Nr. Thickness
(mm)
Size
(inch)
Cutting speed
(mm/min)
Oxygen
(bar)
Fuel gas
(bar)
0768670 3 – 6 1/32 560 – 470 2,5 – 3,5 0,3
0768635 5 – 12 3/64 480 – 390 3,0 – 4,0 0,3
0768599 10 – 75 1/16 400 – 205 3,5 – 4,5 0,3
0768636 70 – 100 5/64 220 – 150 4,5 – 5,5 0,5
0768662 90 – 150 3/32 160 – 125 5,5 – 6,0 0,5

CUTTING NOZZLES PNME – PROPANE, NATURAL GAS

Art. Nr. Thickness
(mm)
Size
(inch)
Cutting speed
(mm/min)
Oxygen
(bar)
Fuel gas
(bar)
0769494 3 – 6 1/32 550 – 430 2,5 – 3,5 0,2
0769495 5 – 12 3/64 440 – 360 3,0 – 4,0 0,2
0769496 10 – 75 1/16 380 – 205 3,5 – 4,5 0,2
0769497 70 – 100 5/64 220 – 150 4,5 – 5,5 0,4
0769498 90 – 150 3/32 160 – 125 5,5 – 6,5 0,4
Chat us via WhatsApp

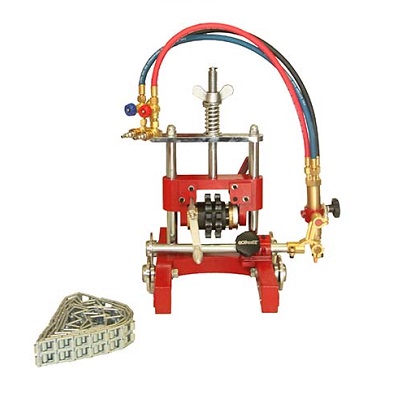

The GCE proFIT® PCM is a universal, manually driven cutting machine with a lightweight design for oxy-fuel applications, ideal for cutting of pipes up to 100 mm of tube wall thickness. Basic equipment contains a chain with the length for cutting pipes with external diameter up to 400 mm. The chain is built by the interlocking links which can be easily removed or added based on particular tube diameter.

There is no electricity needed for operating the machine. Therefore it is an ideal tool that can be used in each workshop but also on-site.

Besides perpendicular cuts, the machine can be used for cutting bevels with angle adjusted on the torch holder mechanism.

We offer delivery and support services.
